Expected Output

Successful Output

A successful result MUST be returned with a 200 OK.

The output body follows the principles of GeoJSON, it must comply with the following characteristics :

  • Root element MUST be a 'FeatureCollection' with one or several 'Feature' objects. Currently only Polygon, Multipolygon, and Point features are supported.
  • Geometries MUST be topologically correct (i.e. no degeneracies or self-intersections)
  • Geometry coordinates are given in pixel space, with (0,0) at the top left of the image. If you have requested padding, features that intersect the padding area will not be discarded on our end.
  • Feature properties MAY include 'category' and 'confidence'.
    • The 'category' property is used for tags, labels or classification results. Its value MUST be an array of strings.
    • The 'confidence' property value MUST be a float between 0.0 and 1.0.

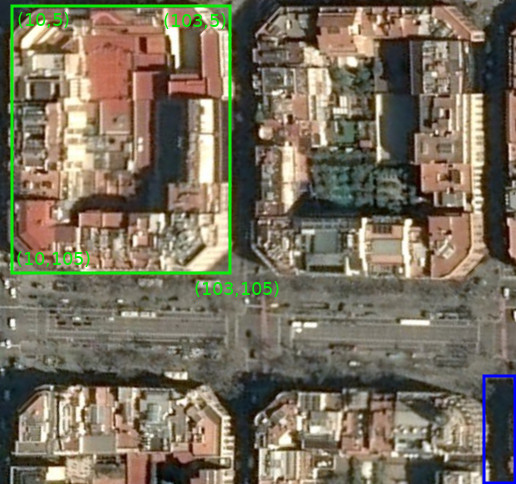

Feature geometry example :

Feature geometry example

  • service requested an image of 256x256 with a padding of 5
  • the input image is 266x266
  • the detected change drawn in green does not overlap the padding area
  • the detected change drawn in blue overlaps the padding area

The result in this case would be:

{
    "type":"FeatureCollection",
    "features": [
        {
            "type":"Feature",
            "properties": {"category":["building"]},
            "geometry": {
                "type": "Polygon",
                "coordinates": [[[10,5],[10,105],[103,105],[103,5],[10,5]]]
            }
        },
        {
            "type":"Feature",
            "properties": {"category":["road"]},
            "geometry": {
                "type": "Polygon",
                "coordinates": [[[240,220],[240,266],[266,266],[266,220],[240,220]]]
            }
        }
    ]
}

Unsuccessful Output

The service should return a body of the following format if it wishes to inform of a permanent processing error for the current image:

{
    "message":"a goblin ate my GPU!",
    "hint":"(optional) message to prevent this error from happening again"
}

If the service is unable to produce a result or a correctly formatted error, the 408, 423, 429, 500, 502, 503 and 504 HTTP return codes will be interpreted as transient errors and will be retried in a later subsequent request. All other HTTP status codes will be interpreted as permanent.
